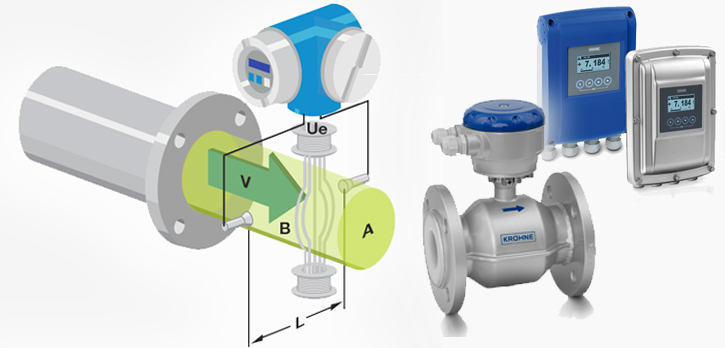

Magnetic Inductive Meter
Flow Meter design meets the demands of a very wide range of applications in industries including the chemical, pulp & paper, water and wastewater, minerals and mining, iron, steel and metals, pharmaceuticals and oil & gas industry. This product is Robust and fully welded construction. Standard solutions for the widest range of industrial applications. Engineered solutions for very demanding applications We are supllying electromagnetic flow sensor is an economical solution for a wide range of applications. OPTIFLUX can be used in applications (including various aqueous solutions), where other measurement techniques e.g. turbines, venturi, etc. were previously used.
FIND MORE HERE
Ecomag
Aquamag
BTU Meter / Net Heat Metering
OPTIFLUX 1000
OPTIFLUX 4040 C 2-wire EMF (4040 for FM)
OPTIFLUX 5000 FL
OPTIFLUX 5000 SW
OPTIFLUX 6000
OPTIFLUX TIDALFLUX 2300 F (4300F for FM)
OPTIFLUX WATERFLUX 3070
OPTIFLUX 2000 Sensor
OPTIFLUX 4000 Sensor
OPTIFLUX 7300 C
OPTIFLUX 5500 C

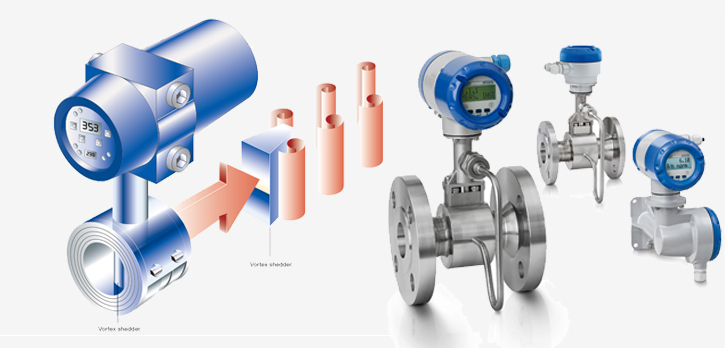

Vortex Flowmeter
Volumetric and mass flow of conductive and non-conductive liquids, gases and vapours, even with fluctuating pressures and temperatures. These are used for measurement of operating, standard volumetric and mass flow of conductive and non-conductive liquids, gases and vapours, even with fluctuating pressures and temperatures.
Flange or sandwich flowmeter is optionally available with integrated pressure and temperature compensation for gases, wet gases, gas mixtures or vapours. OPTISWIRL is useful in pipelines with large diameters, designed for a low pressure loss,thus, potential leakages being reduced to a minimum.
Vortex Flowmeter can be used separating the signal converter from the measuring sensor up to a distance of 15 m / 49 ft in case the measuring sensor is mounted in inaccessible areas. genuine redundant system with two independent measuring sensors and two signal converters, providing twofold functional reliability and availability of the measurement & is suitable for measurements in multi-product pipelines.

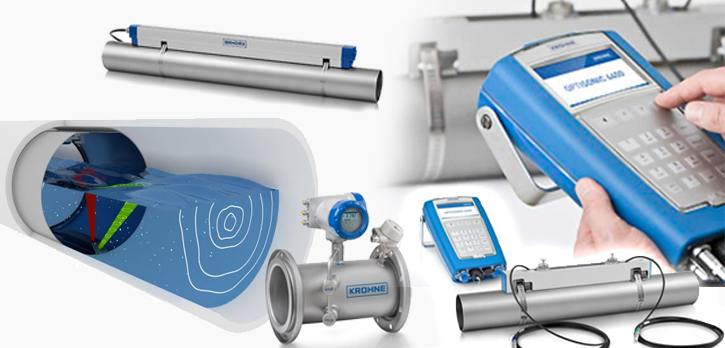

Ultrasonic Flow Meters
The ultrasonic for fluids has established itself as the standard in multi-path custody transfer flow metering, has no wear or pressure loss. Dual beam ultrasonic flowmeter for high-temperature refined products. 3-beam, inline, ultrasonic flowmeter, designed especially for measuring homogeneous conductive and non-conductive liquids, with high accuracy and reproducibility, over a long period of time.
In Biogas offers an ultrasonic measurement solution for biogas and landfill gas. Efficient flow measurement and volume counting of all types of water and waste-water in closed pipelines or in open channels and raceways with weld-in sensors for metal pipelines & with built-on or built-in sensors for open channels.
Ultrasonics provides a large measurement range and does not require recalibration, the installation can be simplified and cost reduced, providing accurate measurement without pressure drop. This technology has a large local LC display and push buttons , contains digital signal processing, easy to operate, gives current, pulse, frequency and status outputs & has low power consumption.
FIND MORE HERE
ALTOSONIC 5
UFM 530 HT
ALTOSONIC III

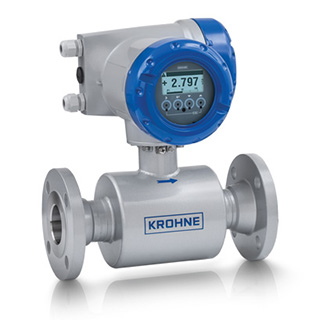

OPTISONIC 3400
OPTISONIC 7300 Biogas
UFM 800 W Weld-in & UFM 800 C

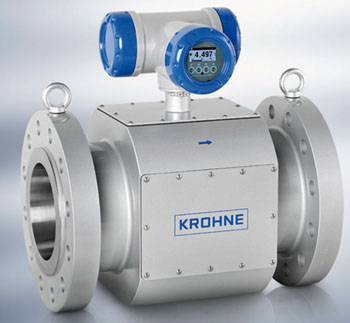

ALTOSONIC V12
OPTISONIC 3400 for District heating and Cooling
OPTISONIC 8300
UFC 030 F
UFM 3030
OPTISONIC 6300
OPTISONIC 7300
OPTISONIC 6300 P

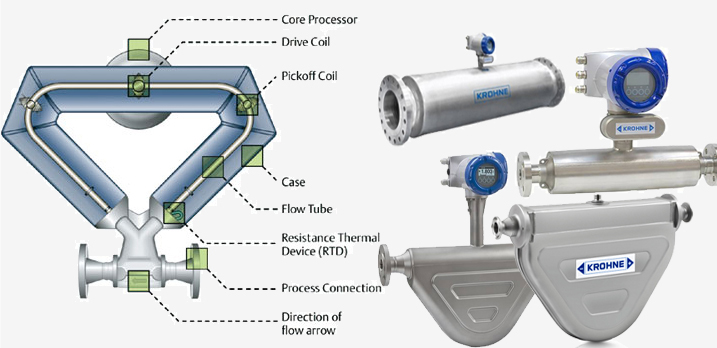

Mass Flow Meter
The OPTIMASS is the only sensor for mass flow with a single straight measuring tube that is available in Titanium,Stainless Steel, Hastelloy® or Tantalum. Stainless steel housing for applications in the food, beverage and offshore industry.
OPTIMASS will provide accurate measurement of volume, mass, density and concentration of liquid and gas applications. This is specialised meter for Compressed Natural Gas (CNG) dispensers, offers excellent long-term stability and reliability of mass flow, over long periods.
We have specialised meter for batching and filing machines, offers excellent long-term stability and reliability of mass flow, over long periods. Coriolis mass flow signal converter is used for the measurement of liquids or gases, cryogenic to high temperature fluids, single or multi-phase fluids using advanced digital signal processing techniques.
FIND MORE HERE
Optimass 2000
Optimass 1000
OPTIMASS 6000 with MFC 400
MFC 400 Modular Converter
Optimass 7000
MFC 300
OPTIGAS 4010 C
OPTIBATCH 4011 C

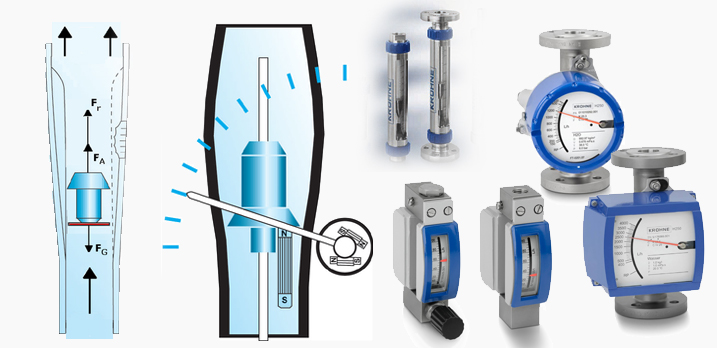

Variable Area Flow Meter
variable area flowmeters feature glass cones of varying lengths for different accuracy requirements. The medium is visible and the flow value of the gas or liquid can be read directly off the scale at the height of the float.It is easy to change the measuring glass, which is protected by a plastic cover, without disassembling the fitting.
The Metal tube miniature Variable-area Flowmeter for both Gas and Liquid applications. Local indication without auxiliary power. The all-metal variable area flowmeters cover the entire range of requirements of the process industry.
Some spelized flowmeter is designed for measuring the volume or mass flow rate of liquids and gases and for measuring gases at low operating pressures. Measurement in all flow directions. Designs for special installation positions (H250H / H250U), EHEDG-approved measuring instrument
FIND MORE HERE
H250 M9
DK 34/37/32
DK 46/48/800
VA40 - VA45
H250 M40
GA 24

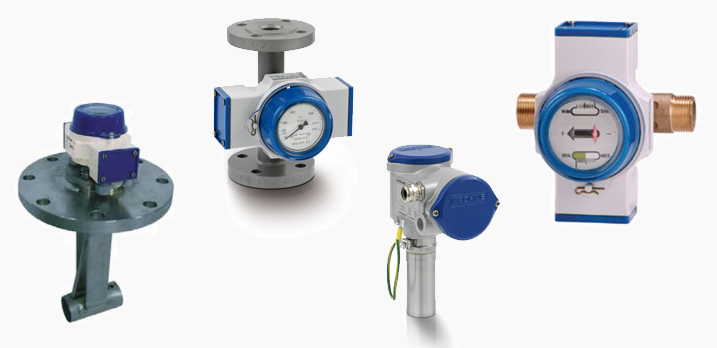

Flow Switches / flap-type flowmeter
Flow switches are used for visual and/or electrical checking of liquid flow. The units are of rugged, glandless construction, and are available in several versions to suit a wide variety of industrial flow monitoring applications. Flap-type flowmeter is largely independent of viscosity and suitable for indicating the flow of water, acids and alkalis.
The SDA flap-type flowmeter can be used for flowmetering various kinds of liquid products by using different materials of construction and different mounting positions. The flowmeter is largely independent of viscosity and suitable for indicating the flow of water, acids and alkalis. The responsibility as to the suitability, intended use and corrosion-resistance of the materials used in their construction rests solely with the purchaser.
